DIRECTV SATELLITE DISH's and accessories |
|
Granby TV has all the Satellite Dish accessories
that you might need to complete your installation.
Installations requiring special mounting hardware, electronics, or
specific cable for long runs is
also our specialty. We carry hardware, and materials for both residential,
and commercial installs.
Give us a call to discuss your needs.
800-509-8424 |
DIRECTV SATELLITE DISH's
|

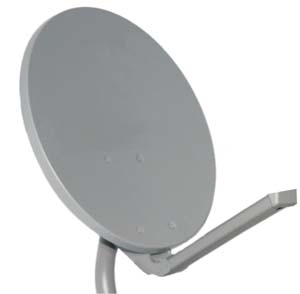

18 Inch round
dual LNB DIRECTV (standard dish)
$39.00
(Call to order 800-509-8424)
Multiswitch
needed for more than 2 receivers
|
18
Inch x 20 Inch Triple LNB DIRECTV
Multi-Satellite Dish
Antenna (Phase 3)
$69.00
• Two dual output LNBs for optimal signal strength
• One Sat C LNB for addional programming
• Digital-quality picture and sound
• Connect to multiple receivers throughout your home
(Call
to order 800-509-8424)
|
|
Channel Master
Gainmaster Directv Satellite dish
Andrew Gain Master Dish w/LNBF's
& SATC KIT $149.00
(Call to
order 800-509-8424)
|
65% more gain than
standard Multibeam dish. Used for 101 110 and 119 Directv - DishNet
satellites - Or Satellites with 10 degree spacing
Holds up to 3 lnbs Reflectors are finished with Thermo Set Powder Coat - A
Hydrophobic Agent is added to the finish to increase water and snow
repellant action - Mounts are manufactured from Galvanized Steel and E
coated for maximum protection - Feed support systems clamp to preformed
satellites 101W-110W-119W degree Birds- Average overall gain through
10.7-12.75 Ghz. is 38 dBi
Antenna dimensions: 35.3 x 26.2
NOTE:
Must be used with a 4 input
Multiswitch (not incl)
|
|
DTV66E International Dish antenna
$149.00
(Call to order
800-509-8424)
|
-
DirecTV 36" International Dish (87CM)
-
For International / Ethnic DirecTV Programming
-
Includes
(1) .87m WorldDirect International Dish
-
Includes
(1) Required LNB for 95 WL Satellite
-
Includes
(1) Required LNB for 101 Satellite
-
Includes
(1) Required Bracket to hold 101 and 95 LNBs
-
Includes
(1) Required Universal Mounting Bracket
-
Includes
(1) Easy to use Instructions
-
Requires an Optional Multi-Switch
|
|
DIRECTV
SLIMLINE
The AU-9 Slimline dish from DIRECTV is smaller, lighter and better looking. It
can be used with the SL5 to receive 101*, 110*, 119* satellites, plus the new KA
satellites (99*, 103*) for most HD programming.
(The new HD
programming requires use of H20/H21/H23/H24
receiver or HR20/HR21/HR23/HR24 receiver/DVR)
For installations in areas which do not require reception of 110*, and 119* the
SL3 can be used to receive programming from 99*,101*,and 103*
Four outputs carry satellite signal from all Five satellites (SL5) or all
Three satellites (SL3)
Heavy duty j-mount with 2" outer diameter mast
Dish surface area dimensions:
22.5 in. x 32.5 in.
LNBF arm with LNBF's attached extends 23.5" from the dish surface area
Weight: 25 lbs (including J-mount mast, reflector, SL5, arm and az/el/pol attachment)
(system comes with support arms 1-long, 1-short)
WARNING: The
AU9 DTV satellite
systems operates between 250 and 2150 mhz thus not allowing the diplexing of off-air, or cable signals.
If you need to connect this system to more than 4 receivers you will need
a KU/KA compatible multiswitch as shown below, or choose SWM
technology, and use SL5-S or SL3-S. >See below<
|

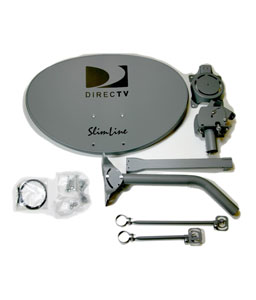

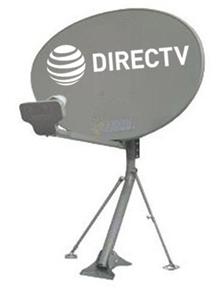

KA/KU band
DIRECTV SLIMLINE
Satellite dish (AU-9)
(Pictured
with SL5 LNBF)
|
|
DIRECTV
KA/KU SLIMLINE DISH
SLSPF
(no LNBF)
(Call to order
800-509-8424) $65.00
|

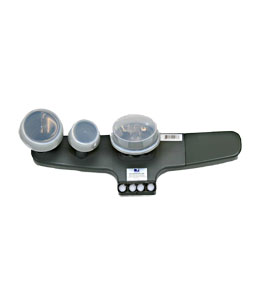

DIRECTV SL5 LNBF
SL5
5 LNBF
(for
reception of 99*-101*-103*-110*-119*)
(Call to order
800-509-8424) $58.00
|
|
|
(for
reception of 99*-101*-103*)
(Call to order
800-509-8424) $37.00
|
SWM
(single wire) Technology is here
These products are
used with the SLSPF (Slimline Dish) and compatible IRD's
Call us to discuss your specific needs
800-509-8424
|

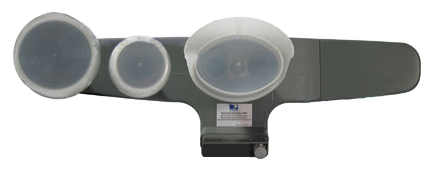

SL5-S
$89.00
|
What
is SWM ?
Single
Wire Multiswitch products are designed to provide
DIRECTV® programming from all current and future
KaKu satellites via a single RG-6 coaxial cable home run
to a set of multiple IRD's connected using one or more
Splitters within a customer’s home.
SWM products allocate channels (frequency blocks) for
viewer selected programming to the SWM compatible IRD's.
These channels (frequencies) contain the programming guide
data and user selected programming channels
|
|
SL3-S
$79.00
|
SWM
Hardware
SWM
Integrated LNB
Has now launched nation wide
Built in multiswitch
Five
orbital slots (119°/110°/103°/101°/99°)
– part number SL5S
Provides
a maximum of 8 Channels
Can not be connected to a SWM Module
Three
orbital slots (103°/101°/99°)
– Part number SL3S
The SWM ODU is powered by a separate 21 volt DC power inserter.
|
|

SWM-8kit $139.00
SWM-16kit $299.00
SWM-32kit
$624.00
|
SWM
Module's

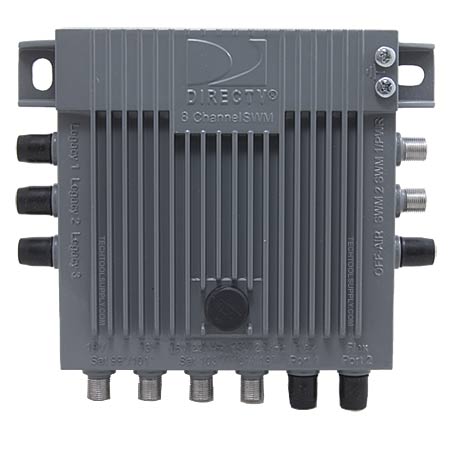

8
Channel –
Two SWM output ports, Three Legacy output ports
Will support up to 8 tuners. Example, Four HD DVR IRD’s
16 Channel
–
Supports
six (6) LNB inputs, each triple-band stacked four ports (Ports 1 - 4)
cover existing 99°/101°, 103°/110°/119° satellites, plus two Flex
Ports (95º sat and 72.5º sat)
Compatable with HR24, H24, HR23, H23, HR22 HR1, H21, R16, D12 and H20
w/.2042 Firmware Update
29 Volt Power Supply Included
DECA "bridge" Technology for IP callbacks and Multi-Room Viewing
(MRV)
When used with DECA adapters, will provide network access to all
compatible receivers, unlike having two SWM8s, which will only pass
network to half the receivers
32
Channel - The
SWM-32 Multiswitch has provisions for up to 32 Tuners. A "Slimline
Antenna" is needed with a SL3 or SL5 multiported LNBF This kit
also allows you to have only one wire going to each receiver (DVR's
or non DVR's)
|
|
SWS-2
$10.00
|
SWS-4
$14.00
|
SWS-8
$18.00
|

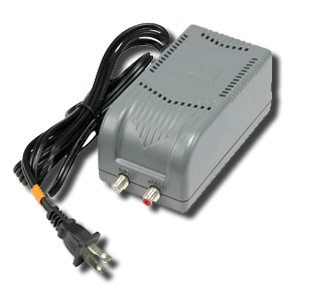

PI-29Z
Power supply for
SWM8 and SWM16
$25.00
|

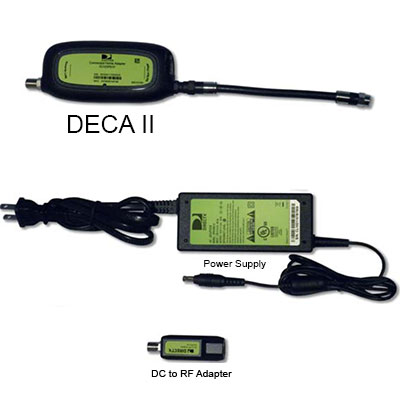

Deca Adaptor
$39.00 |
|

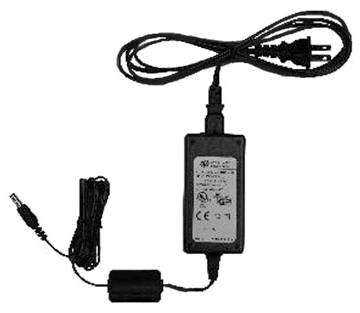

PI21
21 volt power inserter
$20.00
|

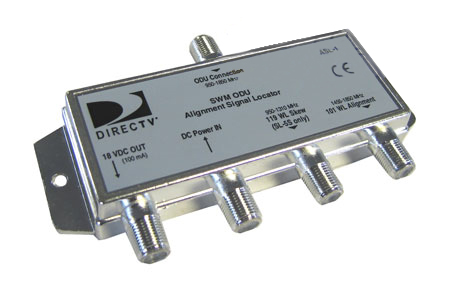

ASL1 (pointing tool)
$22.00
|
Deca Band-stop-filter
$5.00 |
Deca power supply
$14.00 |
|

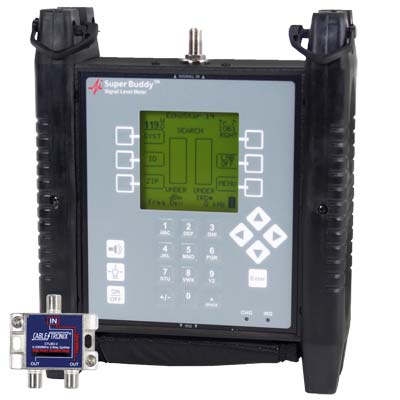

SUPER
BUDDY
satellite signal level meter
Complete
more installs faster and better using the
SUPER BUDDY METER!
Be "sure of your bird" with the positive ID feature or use the
automatic scan to identify the unknown satellite.
Tired of loading new satellite plans? Super Buddy's geo-sensitive field
guide shows you just the birds visible to your install - ALL of them, and
their individual transponders
$729.00
|

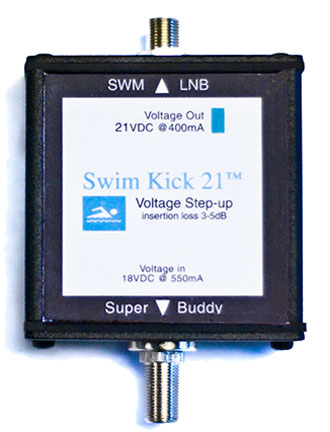

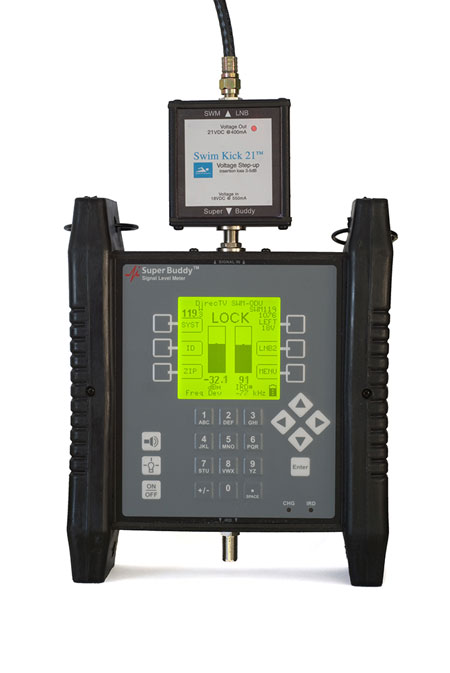

SWM
KICK 21 Power
SWM™
ODU LNBs from your satellite meter. Swim Kick 21™
steps up voltage from your satellite meter to power DIRECTV’s SWM ODU $99.00 |
|
|
Make KA/KU dish

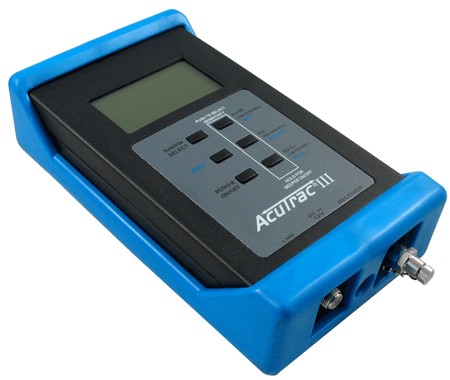

installations easy with the ACUTRAC 3
(Plus) meter
|
|
The
Acutrac III + is an affordable compact satellite signal meter that is
capable of reception of both the Ka Band signals and the Ku Band signals .
The incorporated data port on the meter allows the Acutrac III to remain
flexible with future expansion and developments by giving the user simple
access to firmware, or software upgrades.
- Input
Frequencies: (3)
- Ka Hi 1650-2150MHz
- Ku 950-1450MHz
-Ka Lo 250-750MHz
- Inputs: (2)
Field-replaceable ports
(Standard F-81 barrel connectors)
-To LNB
-To Satellite Receiver (for optional in-line/loop through
| • Supplied
with 8 "AA" NiMH rechargeable cells with 1200mAH capacity
rating |
| • Comes
with neoprene rubber insultation case cover and carrying strap |
| • AC
wall transformer included (12VDC 300mA), as well as the DC auto
charging cord |
| • Will
also accept standard Alkaline batteries for short term use |
| • The
meter powers the LNB assembly with the internal power supply |
| • LCD
Thermometer-type scales with non specific numerical reference in
"tenths" are to be maximized for the highest possible
reading of the analog carrier wave |
$229.00
(Call
to order 800-509-8424) |
|
DIRECTV SATELLITE DISH ACCESSORIES |

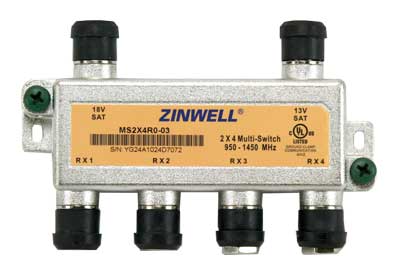

MULTISWITCH'S
Zinwell, Eagle Aspen, Perfect
Vision, Tradewind, and Spaun
(Spaun products not shown, call for info)
DTV3X4 DirecTV Approved 3x4
(Zinwell, Eagle Aspen, Perfect Vision)
Multiswitch (DTV3X4)
$19.00 also
available 3X8 $32.00 (Call
to order 800-509-8424)
|
 | alt= "satellite dish accessories">
|
|
Split your signal from
a standard dual LNB DIRECTV dish into 4 outputs. Unit also has input
for off-air/cable input. |
|
|
|
| • DTV3X4 Mini Max 3x4 Multi-Switch |
| • Frequency:
40-2050 Mhz |
| • Optional
OFF-AIR (UHF/VHF) or cable input |
| • Diplexers
at the recevier end are not required if not using the optional OFF-AIR
(UHF/VHF) or cable input |
| • Compatible
with standard RG-6 coax cable |
|
Multi-Sat
4x8 Multiswitch (Zinwell, Eagle Aspen, Perfect Vision)
$64.00
(Call
to order 800-509-8424)
|
 | alt= "satellite dish accessories">
|
| • Type
"F" female connection points |
| • Frequency
range: 950 to 2150 Mhz |
| • Zinc
die-cast and chrome treated outer shell |
|
5x8 Multiswitch with Power Supply (Zinwell, Eagle
Aspen, Perfect Vision, Tradewind) $79.00
|
|
|
|
Connect up to 8
receivers to a Phase II (18 x 24 inch) or a Phase III (18 x 20 inch)
triple LNB satellite dish antenna. Also allows input of TV antenna
or cable. |
|
|
|
| • Distribute
your DirecTV satellite signal to up to eight (8) satellite receivers |
| • Power
supply included, uses standard coax with F-connectors |
| • Wiring
diagram and product instructions are included. Product may be
substituted for Perfect Vision PVMS5X8 multiswitch. |
| • Works
with any 18 x 20 Triple LNB DirecTV integrated 5x4 output dish |
| • Works
with DIRECTV® Multi Sat and PARA TODOS Systems with 4x4 and
4x2 multiswitches mounted on the back of the dish |
| • Works
with front mounted integrated multiswitches (usually on 18x24 dishes) |
| • UHF/VHF
and CableTV is accessible with or without a satellite receiver
connected |
|
|

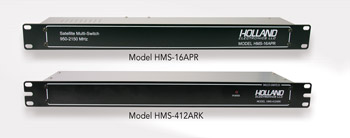

| 5X16
Rack mountable multiswitch (Tradewind)
$230.00 (Call
to order 800-509-8424) |
|
OUT OF STOCK
(give us a call for other alternatives)
|
5
input, 16 output rack mounted multi switch has one input designed for
off-air signals. It will allow user to take two LNB outputs and provide
input to a maximum of sixteen receivers. It routs any of the input to any
outputs by utilizing the 14V/18V switching control from the satellite
receivers. It provides an excellent way to simplify any SMATV
installation.
Features
- Built-in 22 KHz tone
generator
- Provides RHCP and LHCP
switching for 16 receiver
- AC power supplies power to
LNB’S
- Combiners TV input with
satellite output
- Input selected by 14V/18V
and 22KHz fromsatellite receiver employing right and left hand
circular polarization
- Ideal for smaller systems
- 3 year limited warranty
|

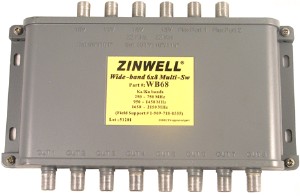

Zinwell 6x8
and 6x16 multiswitch designed to interface with 99°/101°/103°/110°/119° DIRECTV
satellites. To be used with DIRECTV AT9/AU9 Ka/Ku satellite dish for MPEG-4
compression HD compatible receivers.
| • 6X8 Multiswitch is passive,
powered only by the connected satellite receivers (6X16 has external
power supply) |
| • Wideband frequency
multiswitch: 250-750 Mhz, 950-1450 Mhz, 1650-2150 Mhz |
| • To be used with AT9/AU9 Ku/Ka
DIRECTV satellite dish's (Call
to order 800-509-8424) |
|
6X8 $79.00
|
6X16
$179.00
temporarily
discontinued
call us for other options
|
LNBF's
|
Dual LNBF $24.00 |
Sat "C" kit $45.00
|
Heated dual LNBF $89.00
|
|
SL3 (multiport)
$37.00 |
SL5 LNBF $58.00
|
KU-band (Offset dish's)
|
Andrew 1meter
(AZ/EL Mount) $199.00
(commercial grade)
|
Winegard 30 inch (universal or
"D" tube)
$99.00
|
|
Andrew .90 meter (DBS Antenna)
$129.00
|
WS International
36" $89.00
(great for FTA)
|
SUPPORT ARMS
for DTV AU-9
(or any 2" mast)
|
DTV - AU9LB
LONG BRACE
$12.00
|
DTV - AU9SB
SHORT BRACE
$12.00
|

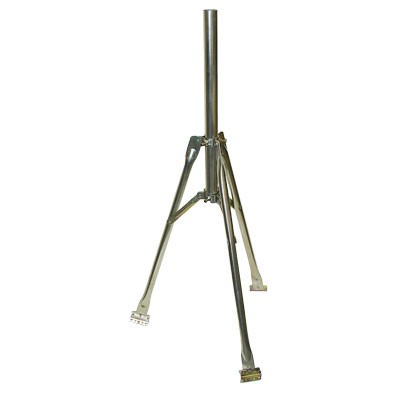

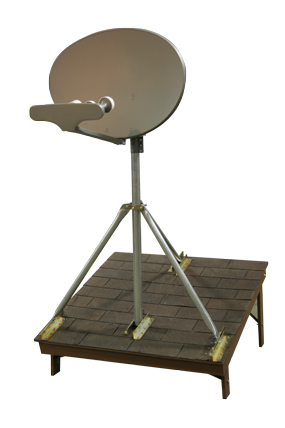

Tripod
- 3' - 5' Universal Tripod
- Conforms to Any Roof
Configuration
- Highwind Load
- Industrial / Commercial Ideal
for Communication or Instrumentation where a stable mount is required
- World's Strongest Tripod—1.5
inch diameter legs—10" long feet
- Compatible with 2" Mast
for Larger Dish
- Includes 40 Lag Bolts &
Tar Pads
- Straight Leg Round/Unflattened
for Added Strength
- All Legs plus mast have two
feet each to mount to roof
- All mounts can be built to
meet your specific needs
Call to
order 800-509-8424
|
|
|
|
|

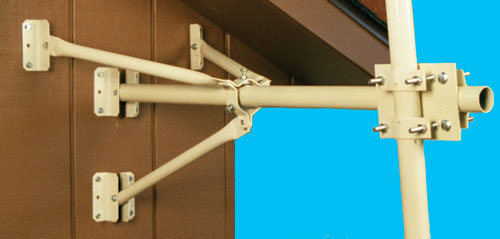

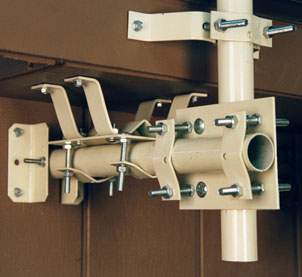

Commercial
Heavy Duty Adjustable WallMount |
|
|
|
#Adjusts from
5" to 30"

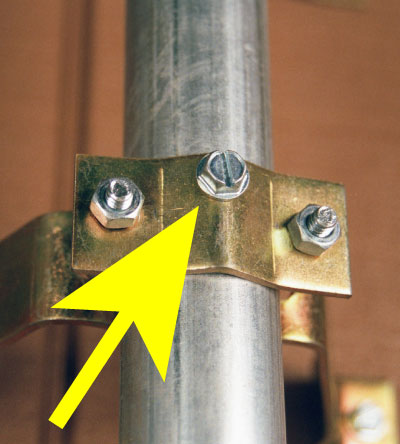

#Positive anti-turn feature
|
|
|
|

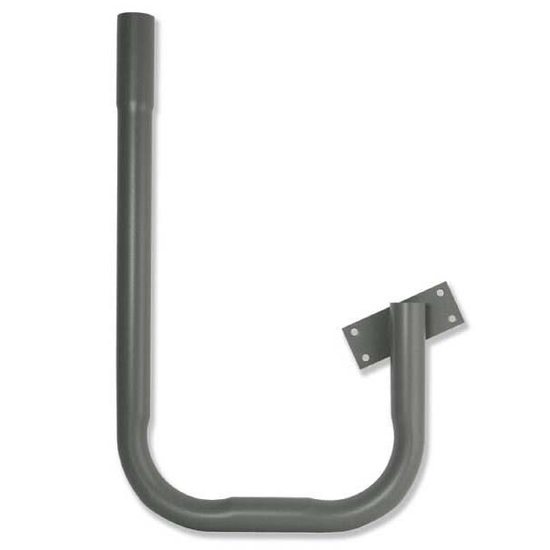

Under Eave
Mounts |
|
|
|
• Fully
Adjustable
• Any Length
• Any Angle
Completely
Assembled
Supported on
rear, bottom & front
Can be custom
made to your specifications
Call
800-509-8424 |
|
|
|
|
|
NON

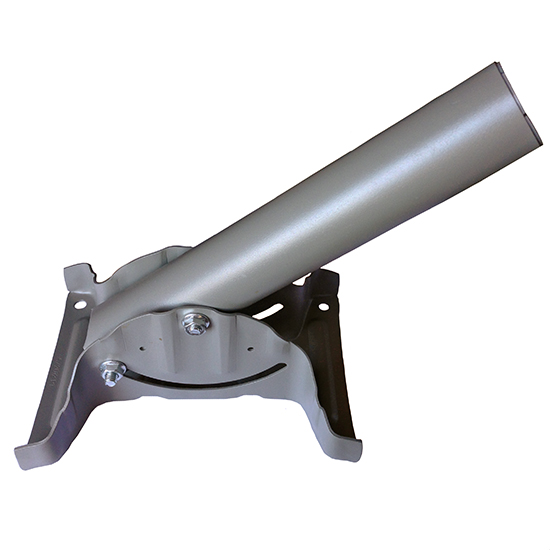

PENETRATING ROOF MOUNTS
# NPR6A 1
3/4" & 2" OD FLIP MAST $69.00
(USE WITH ANY STANDARD DISH, OR SLIMLINE
AND INTERNATIONAL DISH)
(uses 8 blocks for balist)
#
NPR4 2 3/8" OD MAST
$79.00
(USE WITH HUGHESNET, AND MANY COMMERCIAL
APPLICATIONS)
(uses 8 blocks for balist)

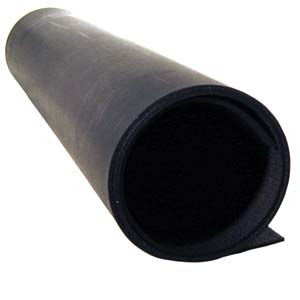

# NPRMAT
36" X 36" RUBBER MAT $24.00
(USE
UNDER MOUNTS FOR ADDITIONAL PROTECTION)
|
|
|
|
|
ACCESSORIES
- Extra Heavy Duty T.V.
masting
- Heavy plastic coated clear Guy
Wire
- Lag Screws
- Guy Rings
- Guy Hooks
- Turnbuckles
- Tar Pad Kits
- Replacement Feet Kits
- Collar Bolt Kits
|
ADDITIONAL
PRODUCTS
WALL MOUNTS
- 2" - 3" - 4" - 6" - 8" - 12" -
18" - 24"
TREE MOUNTS
CHIMNEY MOUNTS
VENT MOUNTS
BRACKETS
MAST
CALL
800-509-8424 |
|

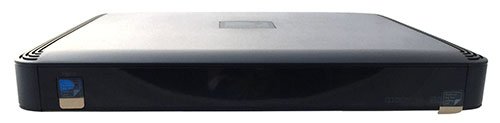

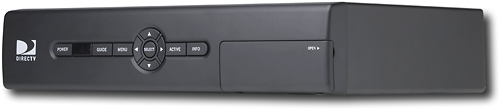

D-12
GTV PRICE $69.00 |

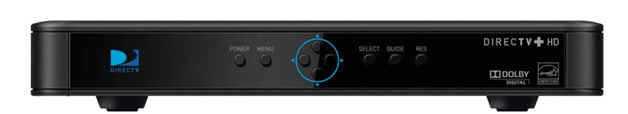

H-24 (HD)
GTV PRICE $99.00
|
|
R-22 (RECEIVER/DVR)
GTV PRICE $99.00 |

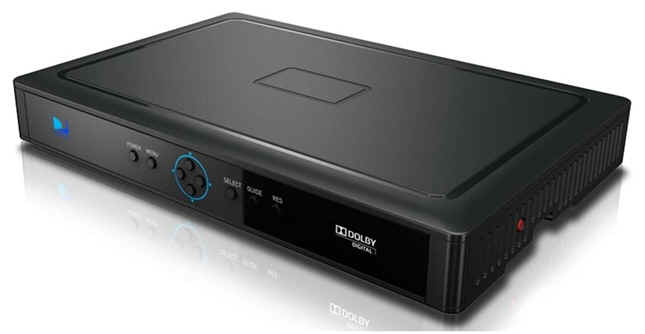

HR-24 (HD RECEIVER/DVR)
GTV PRICE $199.00
|
|
Receivers
must be activated within 30 days of purchase, DVR service fee, and HD
access fee may be required.
DIRECTV® now requires a 24 month commitment, and all equipment must be
returned to DIRECTV® if customer cancels service with DIRECTV®
(Call to
order 800-509-8424) |
|
NOTE
H24 and HR24 installed on systems that are not SWiM (require B-Band
converters) |
|
ZINWELL SUP2400 $12.00
|
SUP2400
B-BAND CONVERTER
Enables
H20/21 and HR20/21 receivers to receive HD programming on the KA
satellites
| Ka
LNB frequencies are between 250Mhz and 750Mhz |
| BBC
up-converts the B-Band into a 1650-2150Mhz |
| The
HR20/21 requires two B-Band converters, one for each tuner |
This
unit is needed to receive all the new HD Directv
channels
(Ships with the HD receivers) |
|
MORE ACCESSORIES: (call for assistance 800-509-8424)
# SPLITTERS
# DIPLEXERS
# AMPLIFIERS
# COVERS
# FITTINGS
# COUPLERS
# CABLE > RG6 single or dual, w/wo/messenger, UL rated swept to 3ghz
# PLENUM CABLE
# GROUNDING SUPPLIES > blocks single/dual/quad, fasteners, wire
# TOOLS > cutters, strippers, crimpers, testers
# HOTSHOT SNOWGUARDS: HOT SHOT 3
|
